Chevrolet Sonic Repair Manual: Throttle Body Assembly Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / General / Throttle Body Assembly Installation


    Install a NEW throttle body seal.

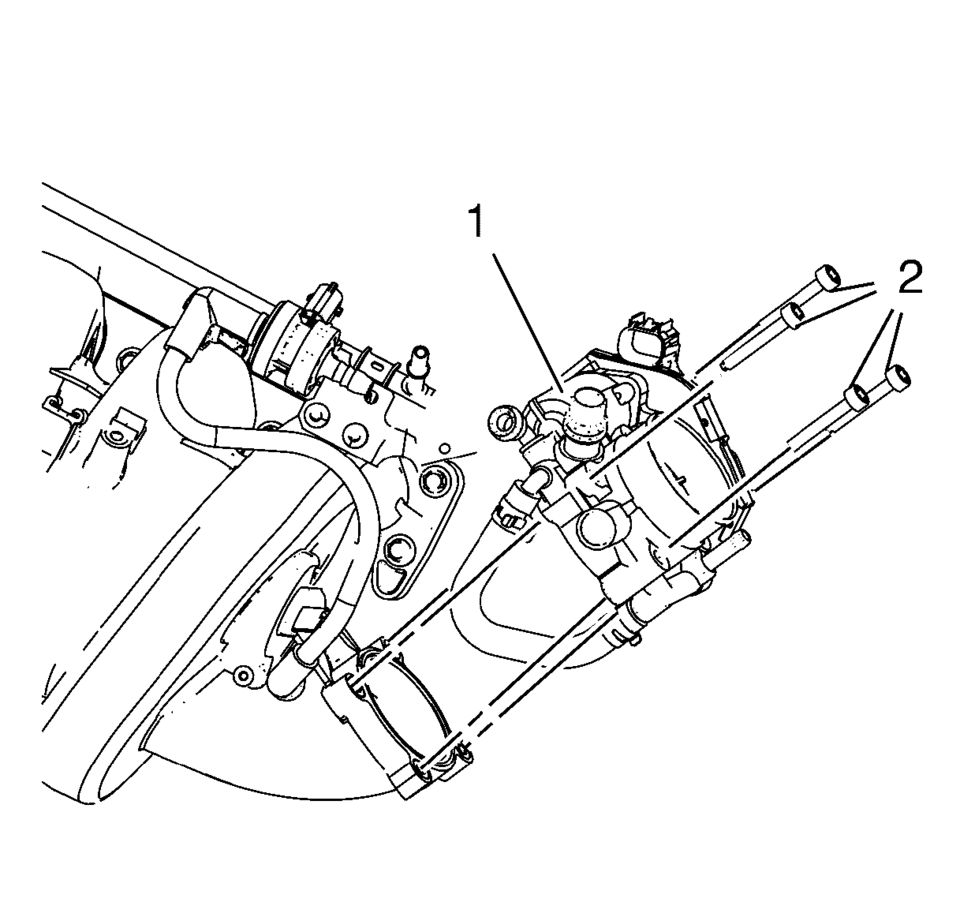

  1. Install a NEW throttle body seal.
  2. Install the throttle body (1).
  3. Caution:

    Refer to Fastener Caution.

  4. Install the 4 throttle body bolts (2) and tighten to  8 Y (71 lb in)

    .

Special Tools
Illustration Tool Number/Description 207649 Rod Hairpins 547324 Flange Screws ...

Throttle Body Assembly Removal
Remove the 4 throttle body bolts (2). Remove the throttle body (1). Remove the throttle body seal. ...
