Callout |
Component Name |
---|---|
Preliminary Procedures
|
|
1 |

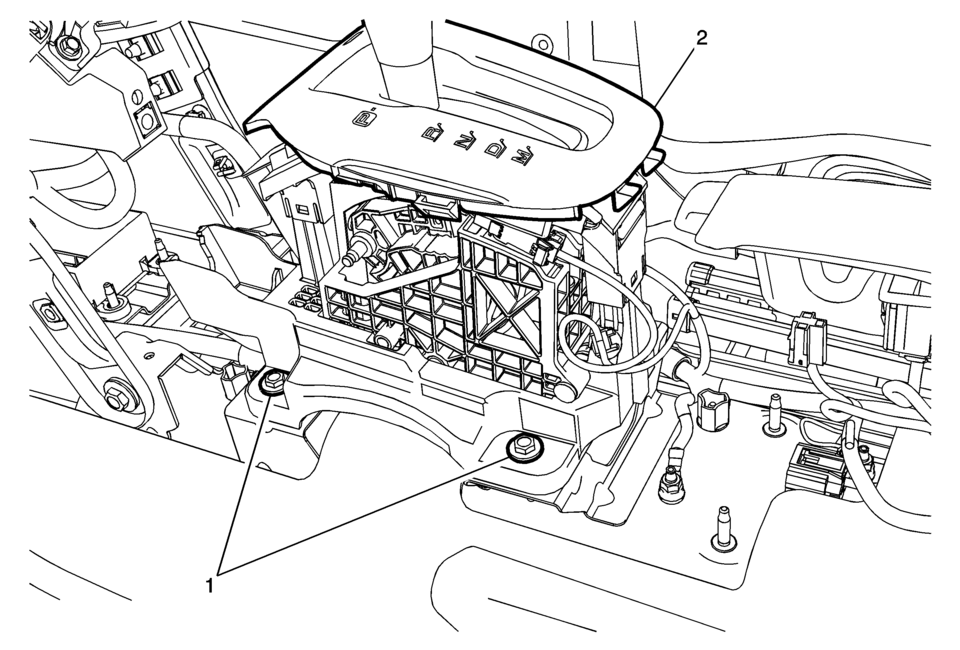

Transmission Control Fastener (Qty: 4) Caution: Refer to Fastener Caution.
9 Y (80 lb in) |
2 |
Transmission Control |
Instrument Cluster Upper Bezel Replacement
Instrument Cluster Upper Bezel Replacement
Callout
Component Name
1
Instrument Panel Cluster Upper Bezel
Procedures
Use a flat bladed plastic trim tool in order to disengage the retainers
securing the instrume ...
Hydraulic Brake Component Operation Visual Inspection
Disc Brake
With the tire and wheel assemblies removed and the brake rotors retained
by wheel lug nuts, visually inspect the brake caliper piston dust boot (2)
sealing area to ensure that there are no brake fluid leaks.
If any evidence of a brake fluid leak is p ...
Fuel Tank Filler Pipe Replacement (Steel Tank)
Removal Procedure
Remove the fuel filler door housing. Refer to Fuel Tank Filler Door
Latch Housing Replacement.
Remove the bracket fastener (1).
Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle.
Remove the fuel tank filler p ...
