Chevrolet Sonic Repair Manual: Turbocharger Oil Feed Pipe Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Intake and Forced Induction / Forced Induction / Turbocharger Oil Feed Pipe Replacement

Removal Procedure
  1. Open the hood.
  2. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection.
  3. Remove the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement.

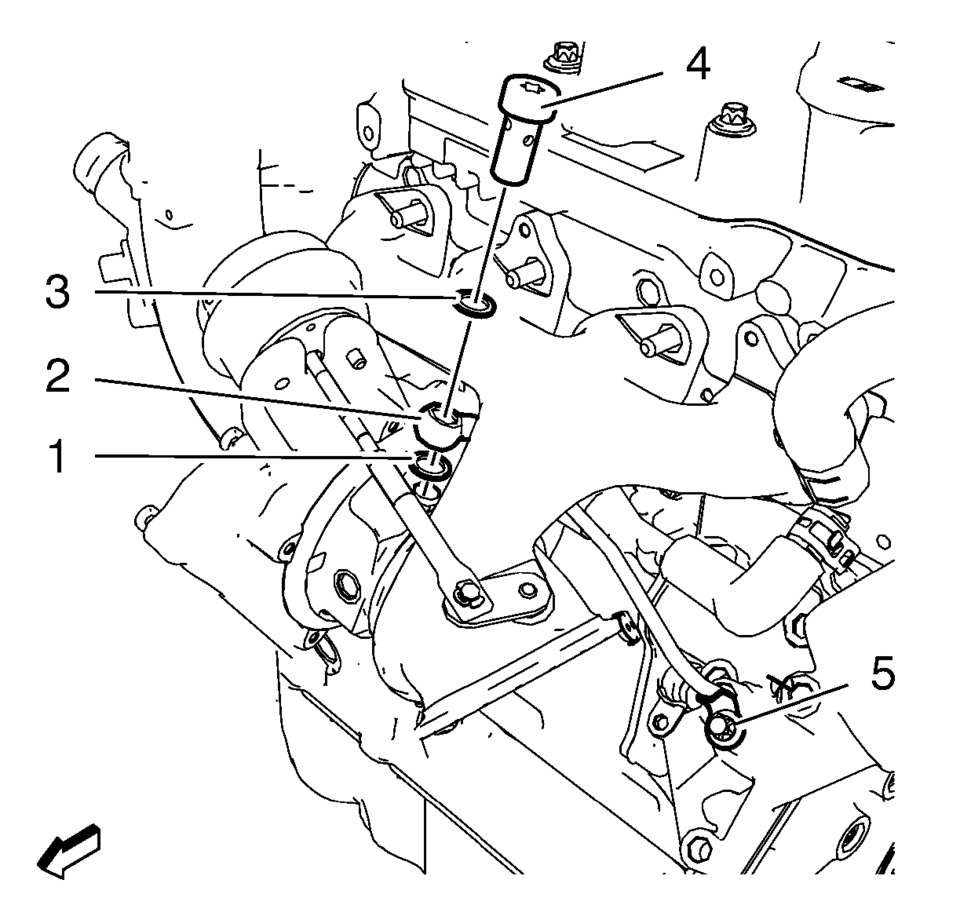

  4. Remove the turbocharger oil feed pipe bolt (5).
  5. Remove the turbocharger oil feed pipe hollow screw (4) and the 2 seal rings (1) and (3).
  6. Remove the turbocharger oil feed pipe (2) and the rubber seal ring.
Installation Procedure
  1. Clean the sealing surfaces.

  2. Install the turbocharger oil feed pipe (2) along with a NEW rubber seal ring.
  3. Install the turbocharger oil feed pipe hollow screw (4) and 2 NEW seal rings (1) and (3).

    4. Caution:

    Refer to Fastener Caution.

  4. Install the turbocharger oil feed pipe bolt (5) and tighten to  10 Y (89 lb in)

    .

  5. Tighten the turbocharger oil feed pipe hollow screw to  30 Y (22 lb ft)

    .

  6. Install the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement.
  7. Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection.
  8. Close the hood.
