Chevrolet Sonic Repair Manual: Water Outlet Installation

  1. Clean the sealing surfaces.

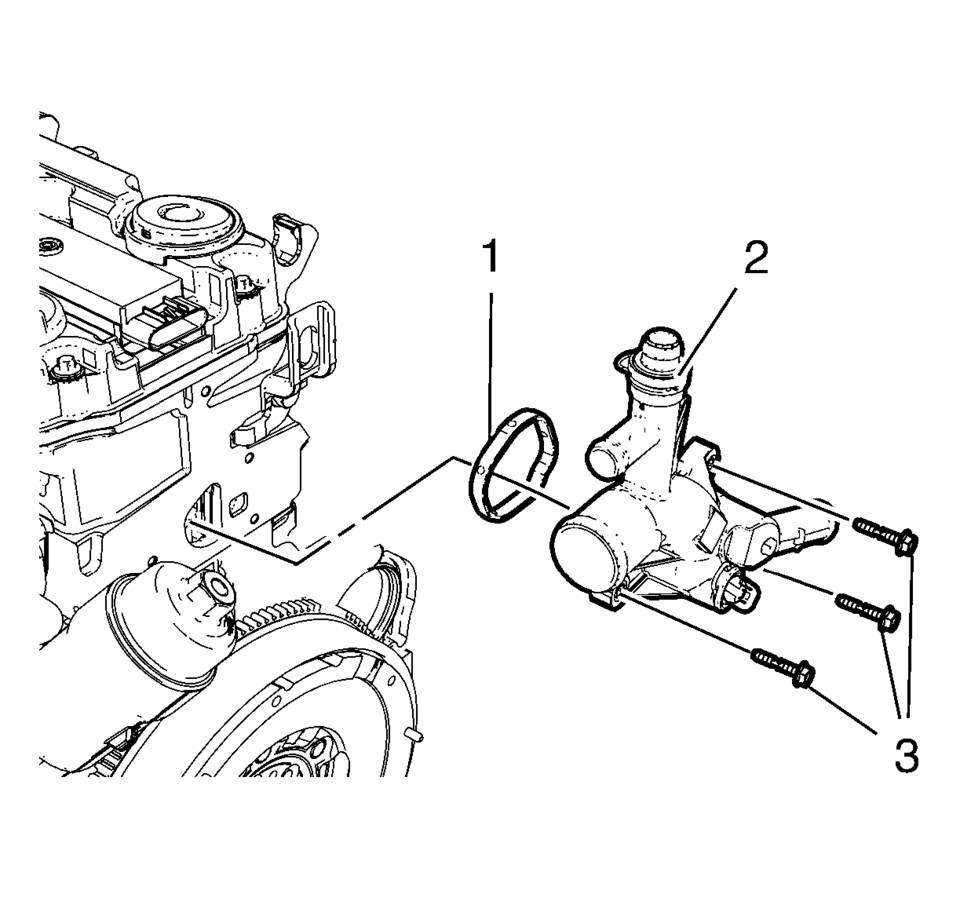

  2. Install the water outlet (2) and a NEW water outlet seal ring (1).
  3. Caution:

    Refer to Fastener Caution.

  4. Install the 3 water outlet bolts (3) and tighten to  8 Y (71 lb in)

    .

Water Inlet Replacement (LUW)
Removal Procedure Drain the engine coolant system. Refer to Cooling System Draining and Filling. Disconnect the engine coolant temperature sensor connector (1). ...

Water Outlet Removal
Remove the 3 water outlet bolts (3). Remove the water outlet (2) and the water outlet seal ring (1). ...
