Chevrolet Sonic Repair Manual: Water Outlet Replacement (LUV)

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Cooling / Information / Water Outlet Replacement (LUV)

Removal Procedure
  1. Drain the engine coolant system. Refer to Cooling System Draining and Filling.


  2. Remove the following:

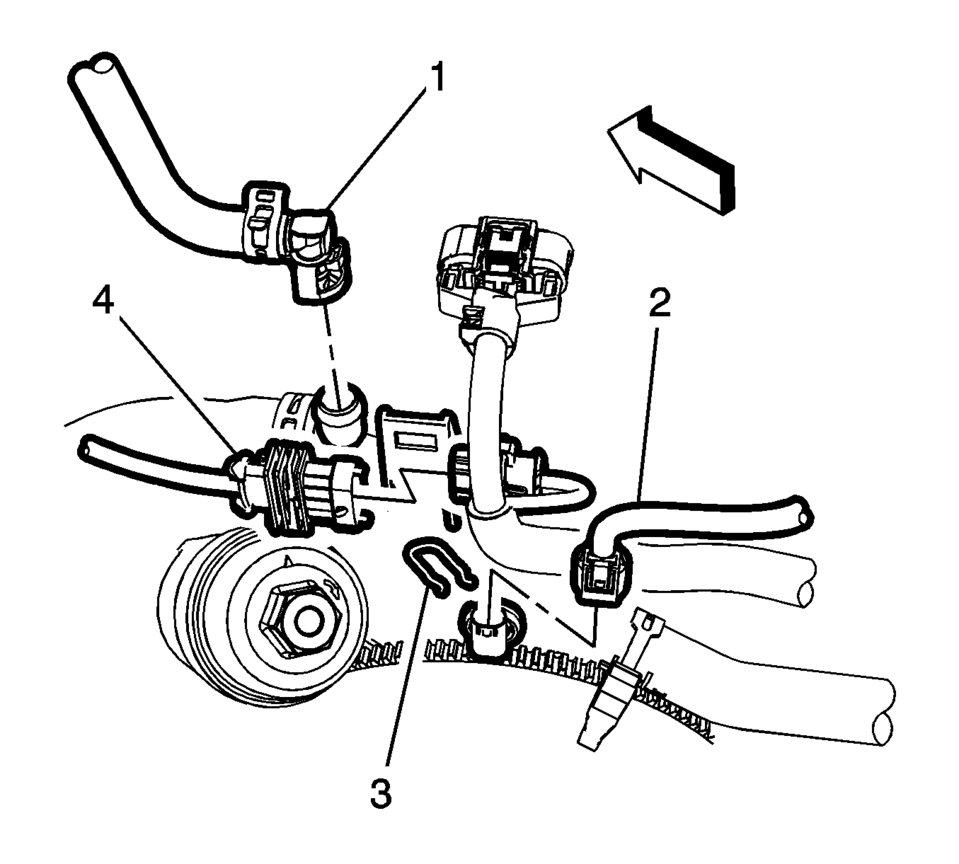

  • Engine coolant air bleed hose (1)
  • Engine coolant temperature sensor (2) and connector clip (3)
  • Heated oxygen sensor connector (4)

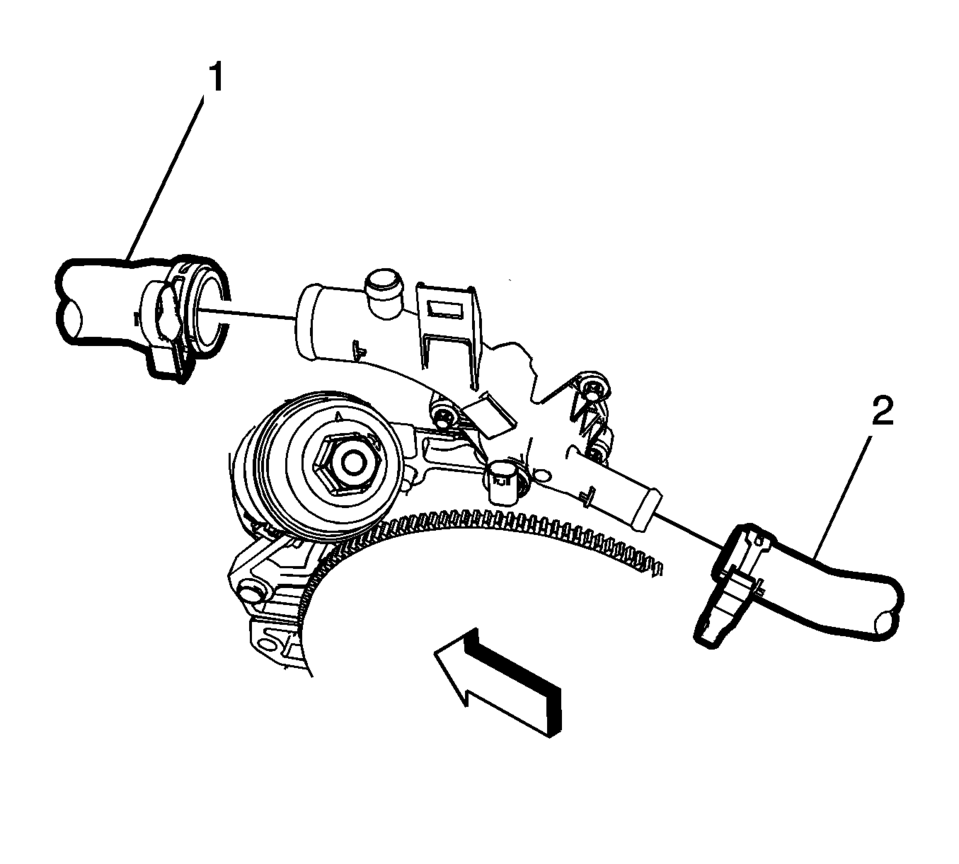

Remove the heater outlet hose (1) and the heater inlet hose (2).
  • Remove the heater outlet hose (1) and the heater inlet hose (2).

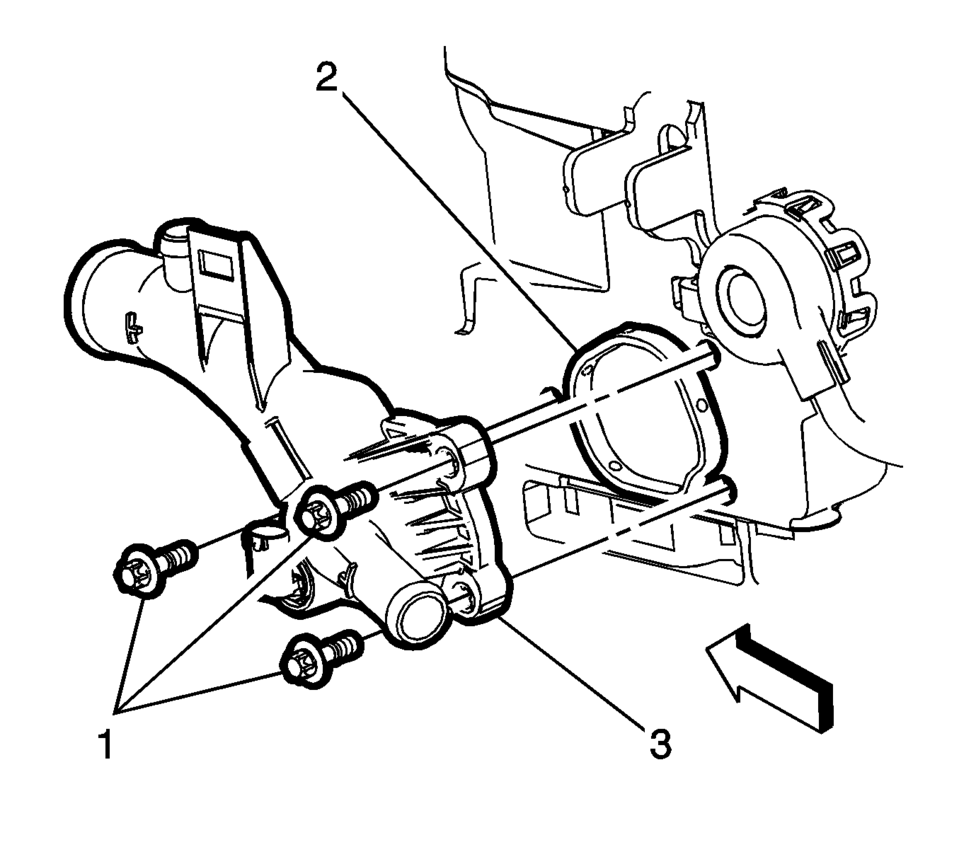

  • Remove the water outlet bolts (1) and discard the water outlet seal (2).
  • Remove the water outlet (3).
    • Installation Procedure
    1. Clean the sealing surfaces.

    2. Install the water outlet (3) and a NEW water outlet seal (2).

      3. Caution:

      Refer to Fastener Caution.

    3. Install the water outlet bolts (1) and tighten to 8 Y (71 lb in)

      .



    4. Install the heater outlet hose (1) and the heater inlet hose (2).

    5. Connect the following:
    • Engine coolant temperature sensor (2) and connector clip (3)
    • Heated oxygen sensor connector (4)
    • Engine coolant air bleed hose connector (1)
  • Fill the engine coolant system. Refer to Cooling System Draining and Filling.
  • Start the engine and check for coolant leaks.
    • Water Outlet Removal
    Remove the 3 water outlet bolts (3). Remove the water outlet (2) and the water outlet seal ring (1). ...
