Chevrolet Sonic Repair Manual: Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
- Ensure that the steering wheel is set in a straight ahead position.

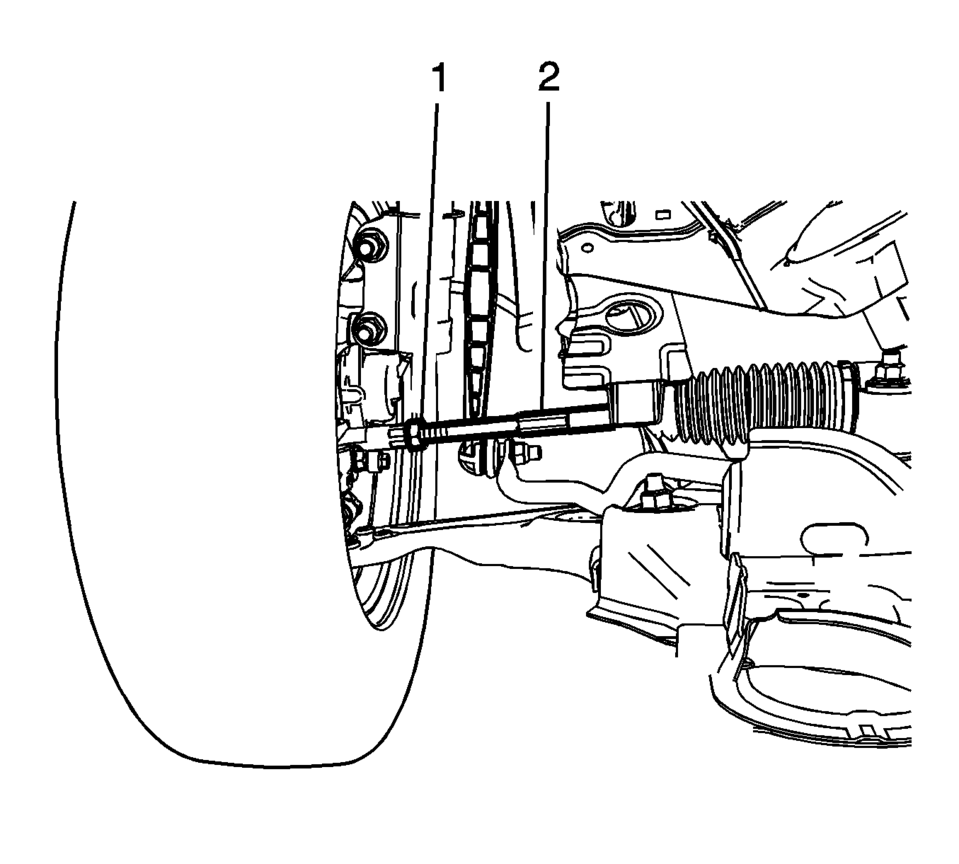

- Loosen the tie rod jam nut (1).
- Adjust the toe to specification by turning the inner tie rod (2). Refer to Wheel Alignment Specifications.
- Tighten the tie rod nut (1) to 60 Y (44 lb ft)
.
Caution:
Refer to Fastener Caution.
