Nissan Armada 2025-2026 Owner's Manual: Windshield wiper blades
Cleaning
Basic information
If visibility in your Nissan Armada is reduced after using the washer system, or if the wiper blades produce chatter or streaking, contaminants such as wax, oil, or dirt may be present on the windshield or blades.
Clean the windshield thoroughly using a suitable washer fluid or a mild detergent. A properly cleaned surface will allow water to sheet evenly rather than form droplets.
For best results, wipe each wiper blade with a soft cloth soaked in washer fluid or mild detergent, then rinse with clean water. If streaking persists, replace the wiper blades to maintain clear visibility and safe driving conditions in your Nissan Armada.
Worn or damaged wiper blades can scratch the glass surface and significantly reduce driver visibility, especially in adverse weather.
When a washer nozzle is clogged
For the Nissan Armada, if a washer nozzle becomes blocked, it is recommended to have it serviced by a qualified technician. Avoid using sharp objects such as needles or pins to clear the nozzle, as this can permanently damage the spray mechanism.
Improper cleaning methods may lead to reduced washer performance or uneven spray patterns.
Replacing
Replace the wiper blades on your Nissan Armada when signs of wear are visible or performance declines.

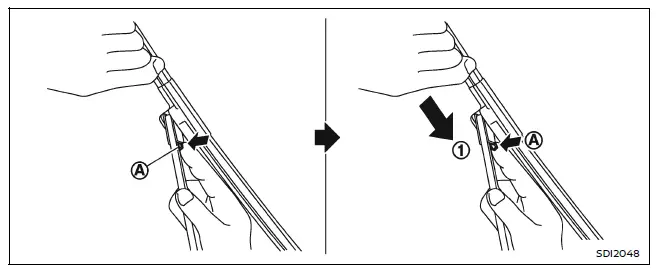

1. Lift the wiper arms carefully, starting with the driver’s side, followed by the passenger’s side.
2. Press the release tab A and slide the blade downward along the arm 1 while holding the tab to detach it.
3. Install the new wiper blade by aligning it with the arm and pushing until a secure click is heard.
4. Rotate the blade until the locking dimple is correctly positioned in the groove.
CAUTION
- After replacing the wiper blades on your Nissan Armada, always return the arms to their original resting position to prevent damage when opening the hood.
- Ensure that the wiper blades make full contact with the windshield; otherwise, wind pressure may damage the wiper arms during operation.
Rear window wiper blades
Inspection or replacement of rear wiper blades on the Nissan Armada should be performed by a NISSAN dealer or qualified service provider to ensure proper fitment and function.
Air cleaner
To access the air filter in your Nissan Armada, release the retaining clips 1
and carefully lift the air cleaner housing upward 2.
The air filter element in the Nissan Armada is designed for si ...
