Chevrolet Sonic Owner's Manual: Lower Anchors

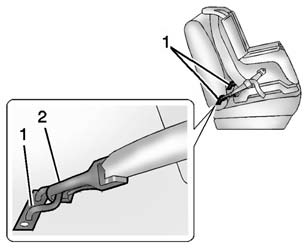

Lower anchors (1) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (2).
Lower Anchors and Tethers for Children (LATCH System)
The LATCH system secures a child restraint during driving or in a crash. LATCH
attachments on the child restraint are used to attach the child restraint to the
anchors in the vehicle. The LATCH sy ...
Top Tether Anchor
A top tether (3, 4) anchors the top of the child restraint to the vehicle. A
top tether anchor is built into the vehicle. The top tether attachment (2) on the
child restraint connects to the top ...
