Chevrolet Sonic Repair Manual: 3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Automatic / General / 3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation



3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation

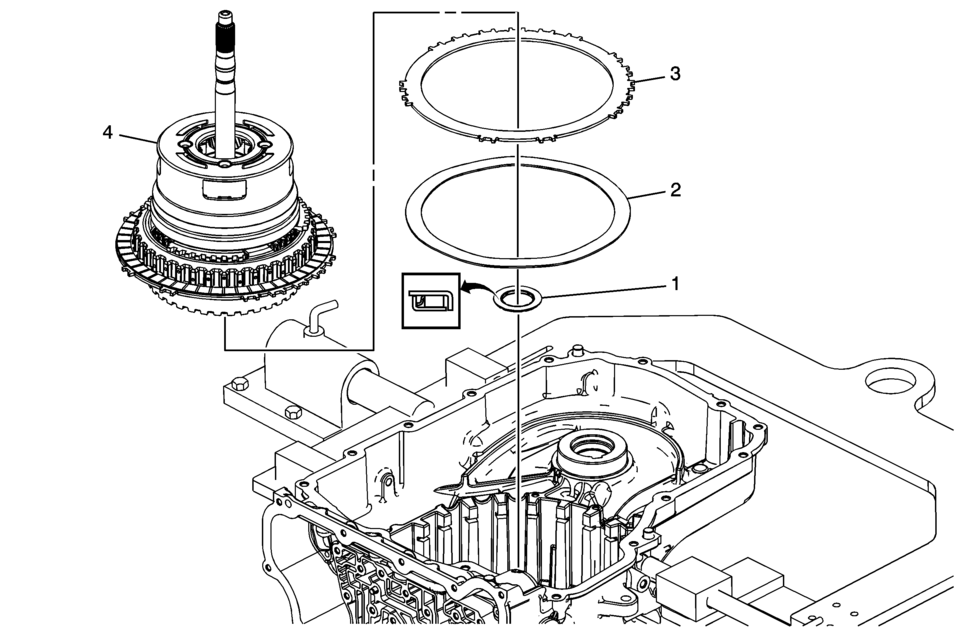

Callout

Component Name

1

3? Reverse and 4?? Clutch Housing Thrust Bearing

2

2? Clutch Apply Plate (Waved)

3

2? Clutch Plate (Qty: 1)

Note:

  • Only install one 2? Clutch Plate. The remaining clutch plate is installed with the gearset assembly.
  • Align the large flat areas with the valve body end of the case and the 2 tabs on the clutch plate that are close to each other with the slots at the bottom right corner of the case.

4

3? Reverse and 4?? Clutch Housing Assembly and Gearset

Note:

Align the large flat areas of the 2? Clutch Plate with the valve body end of the case and the 2 tabs on the clutch plate that are close to each other with the slots at the bottom right corner of the case.
