Automatic Transmission Control Indicator Opening Cover Replacement

Callout

Component Name

Preliminary Procedure

Remove the front floor console cover. Refer to Front Floor Console Cover Replacement.

1

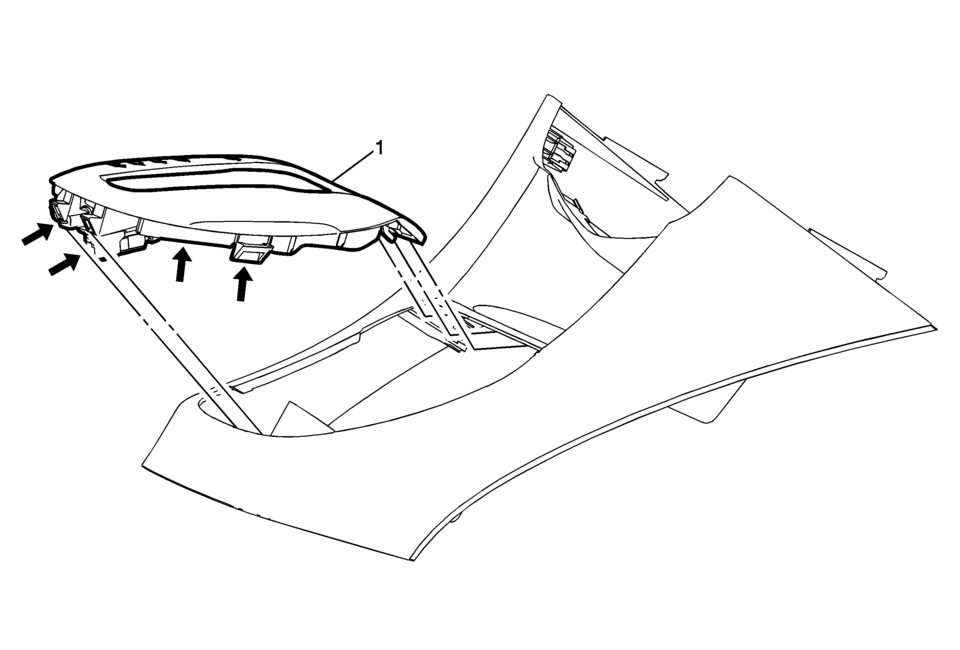

Automatic Transmission Control Indicator Opening Cover Assembly

Procedure

Release the retainer clips securing the transmission control indicator to the front floor console cover.
