Charge Air Bypass Regulator Solenoid Valve Replacement

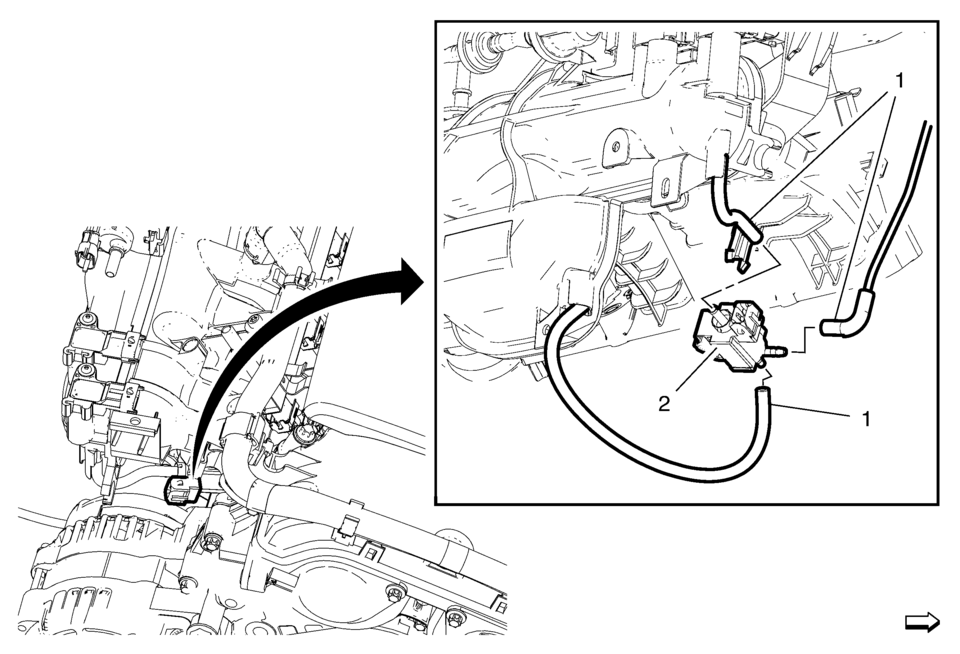

Callout

Component Name

1

Charge Air Bypass Regulator Solenoid Valve Hose (Qty: 3)

Procedure

Disconnect the electrical connector.

2

Charge Air Bypass Regulator Solenoid Valve
