Nissan Armada 2025-2026 Owner's Manual: Difference between predictive and actual distances
Basic information
The Nissan Armada RearView Monitor provides reference guidelines only. The actual distance to objects may differ depending on terrain and object positioning.
On uneven surfaces such as slopes or when objects extend outward, the displayed distance may not accurately reflect real-world positioning.
When uncertain, always turn your head to visually confirm surroundings or exit the Nissan Armada to inspect the area behind the vehicle.

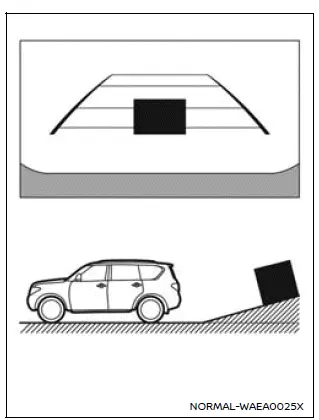

Backing up on a steep uphill
When reversing uphill, the Nissan Armada guide lines may appear closer than actual distances.
Objects shown on the display are typically farther away than they appear.

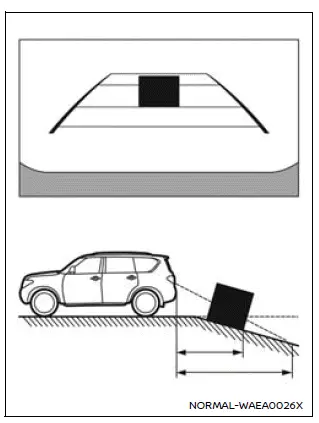

Backing up on a steep downhill
When reversing downhill, the Nissan Armada guide lines may appear farther than the actual distance.
Objects shown on the display are typically closer than they appear.

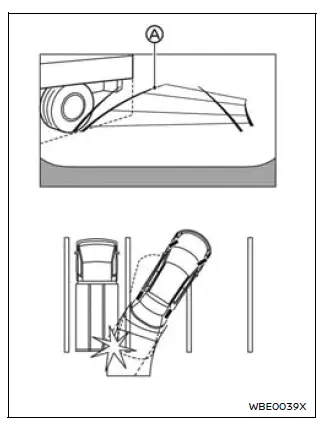

Backing up near a projecting object
The Nissan Armada predictive course lines A may not align with objects that extend into the vehicle’s path.
Even if the lines do not touch the object on the display, a collision may still occur if the object protrudes into the actual reversing path.

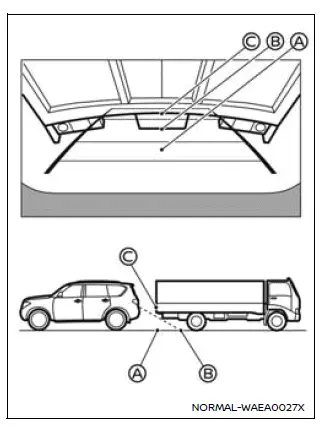

Backing up behind a projecting object
In the Nissan Armada display, position C may appear farther than position B, although both are actually at the same distance.
This optical difference may cause misjudgment, and the vehicle could contact the object if it extends into the reversing path.
