Chevrolet Sonic Repair Manual: Input and Output Speed Sensor Removal
|

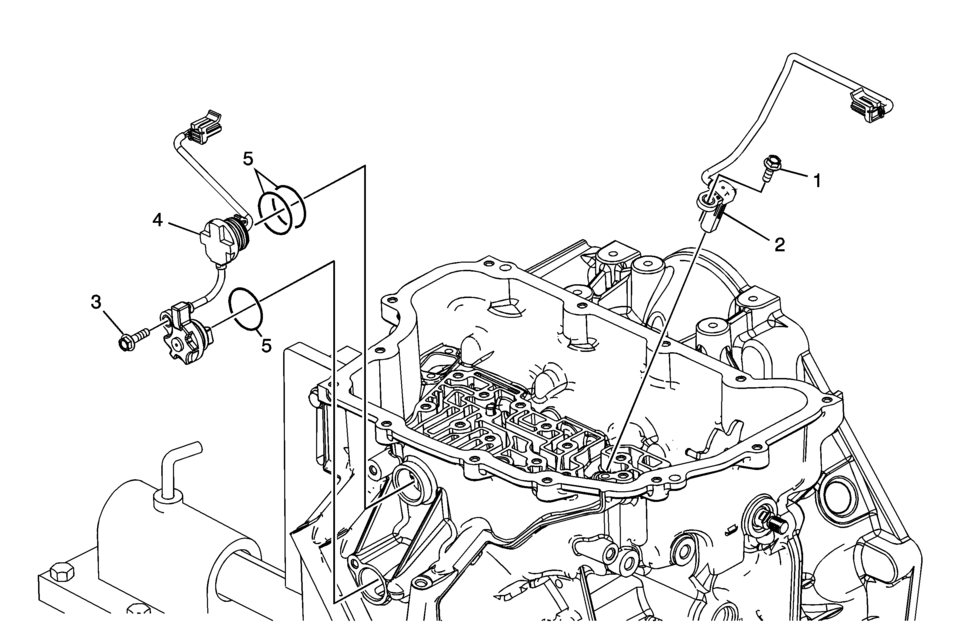

Callout |
Component Name |
|---|---|
|
1 |
A/Trans Output Speed Sensor Bolt M6 x 18 (Qty: 1) |
|
2 |
A/Trans Output Speed Sensor Assembly |
|
3 |
Input Speed Sensor Bolt M6 x 23 (Qty: 1) |
|
4 |
Input Speed Sensor Assembly Note: Compress the locking tabs on the plug to release it from the case and to avoid damaging the retainers. |
|
5 |
Input Speed Sensor Assembly Seals (Qty: 3) Note: Discard the seals. They are not reusable. |
Input and Output Speed Sensor Installation
Input and Output Speed Sensor Installation
Callout
Component Name
1
Input Speed Sensor Assembly Seals
2 ...
