Chevrolet Sonic Repair Manual: Lift Plate and Holding Fixture Removal
|

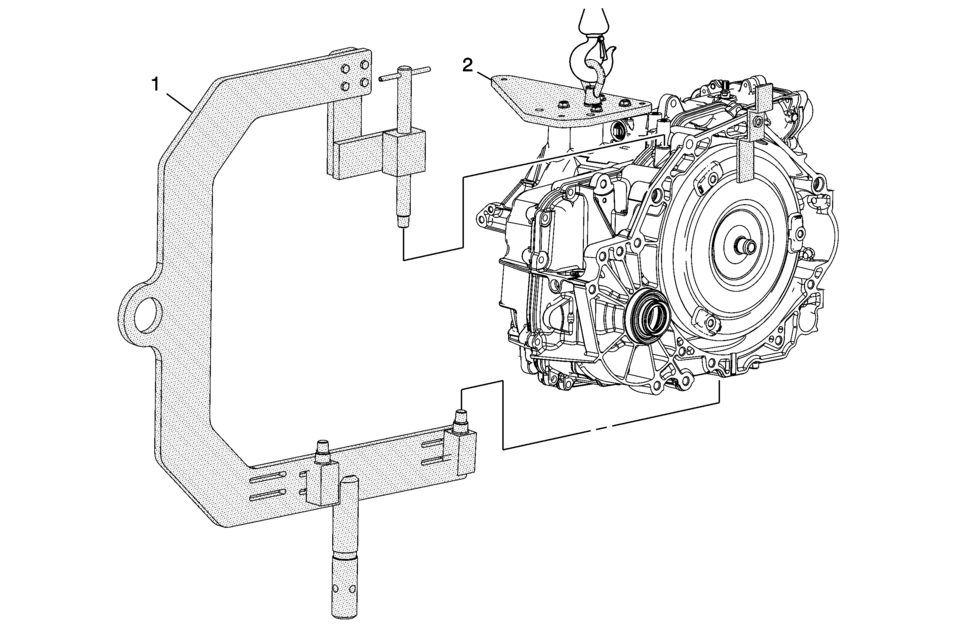

Callout |
Component Name |
|---|---|
|
1 |
DT-46625 Transmission Holding Fixture For equivalent regional tools, refer to Special Tools. Note: Raise the transmission in order to remove the holding fixture. |
|
2 |
DT-47811-S1 Transmission Lift Plate For equivalent regional tools, refer to Special Tools. Note: Lower the transmission assembly onto the transmission jack in order to remove the lift plate. |
Lift Plate and Holding Fixture Installation
Lift Plate and Holding Fixture Installation
Callout
Component Name
1
DT-47811-A Transmission Lift Plate
Warning ...
Manual Shift Detent Lever with Shaft Position Switch Assembly Replacement
Special Tools
DT-41229 Manual Shaft Pin Installer
DT-48550 Detent Lever Pin Remover
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Disconnect ...
