Callout |
Component Name |
---|---|
Preliminary Procedure
Remove the control valve body. Refer to Control Valve Body Replacement. |
|

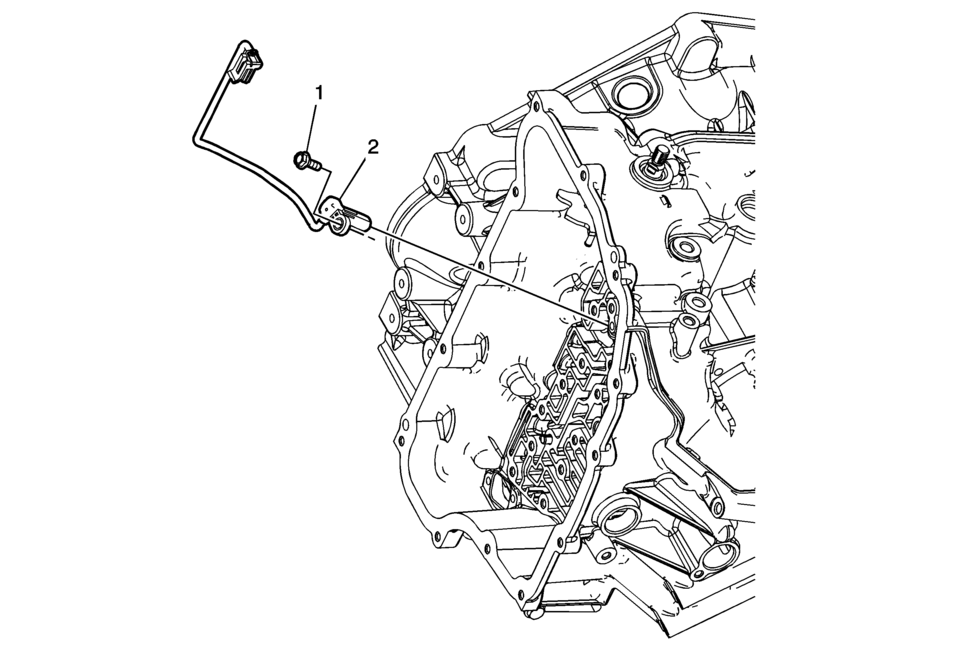

1 |
Output Speed Sensor Bolt M6 x 18 Caution: Refer to Fastener Caution.
9 Y (80 lb in) |
2 |
Output Speed Sensor Procedure
Perform the transmission adaptive values learn procedure. Refer to Transmission Adaptive Values Learn. |
Rear Bumper Fascia Replacement (Hatchback)
Rear Bumper Fascia Replacement
Callout
Component Name
Preliminary Procedures
Remove the screws from the rear wheelhouse liners to the rear fascia.
Refer to Rear Wheelhouse Liner Replacement.
Disconnect the rear electrical ...
Lift Plate and Holding Fixture Installation
Lift Plate and Holding Fixture Installation
Callout
Component Name
1
DT-47811-A Transmission Lift Plate
Warning: Handle with care, the transmission assembly weighs
over 83 Kg (183 lbs). Bodily i ...
Control Valve Body Assembly Disassemble (Gen 1)
Control Valve Body Assembly Disassemble
Callout
Component Name
1
Control Solenoid Valve Support
2
Control Valve Body Bolt M5 x 40.5 (Qty: 1)
3
...
