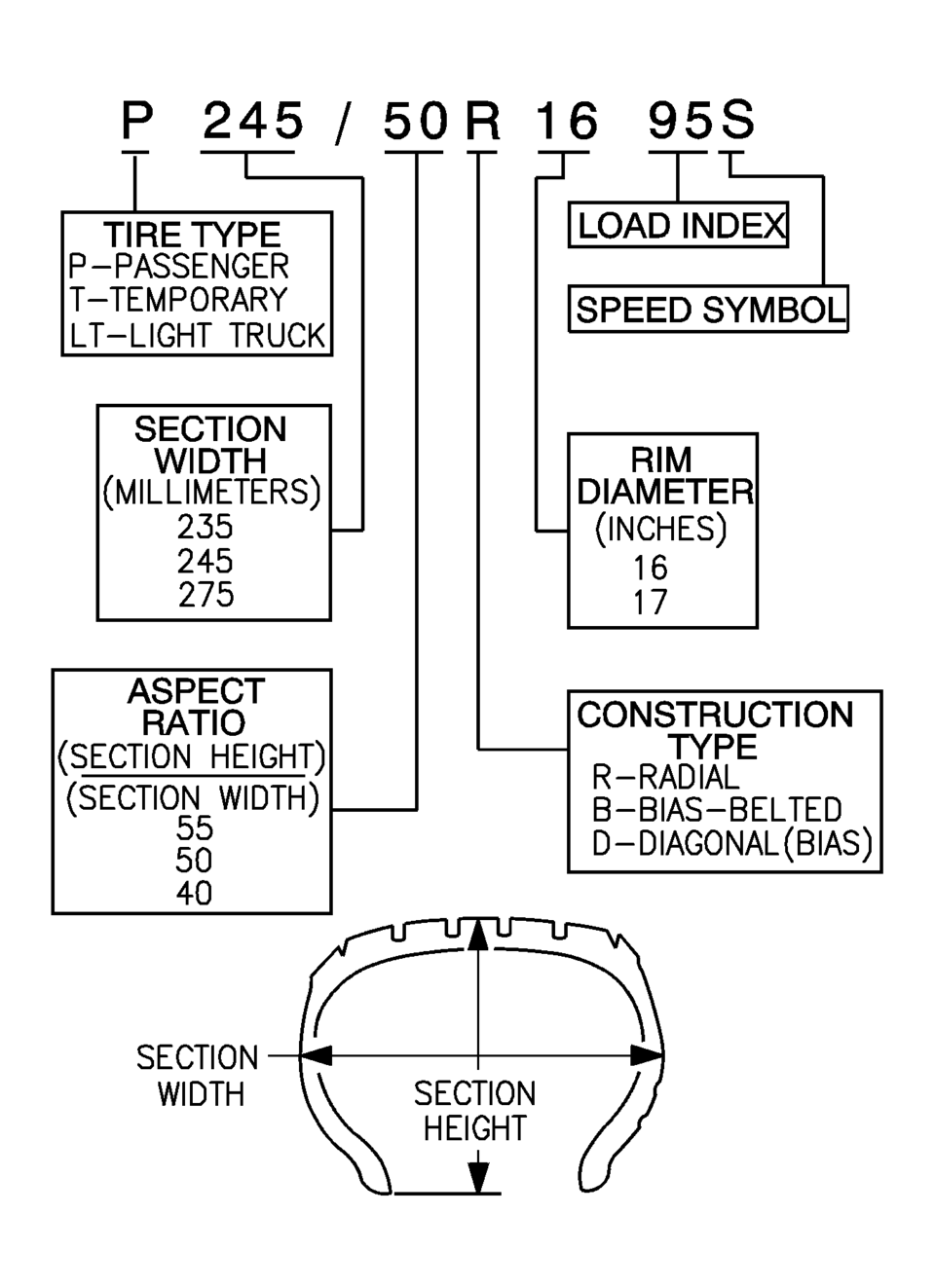

Chevrolet Sonic Repair Manual: P-Metric Sized Tires Description
Replacement tires should be of the same tire performance criteria (TPC) specification number. This will ensure the same size, the same load range, and the same construction as those originally installed on the vehicle.
Metric Wheel Nuts and Bolts Description
Metric wheel/nuts and bolts are identified in the following way:
The wheel/nut has the word Metric stamped on the face.
The letter M is stamped on the end of the wheel bolt.
The thread sizes ...
Replacement Wheels Description
Replace the wheel if any of the following conditions exist:
The wheel exhibits excessive runout.
The wheel is bent.
The wheel is cracked.
The wheel is severely rusted.
The wheel is severe ...
