Chevrolet Sonic Repair Manual: Special Tools
|
Illustration |
Tool Number/ Description |
|---|---|
|

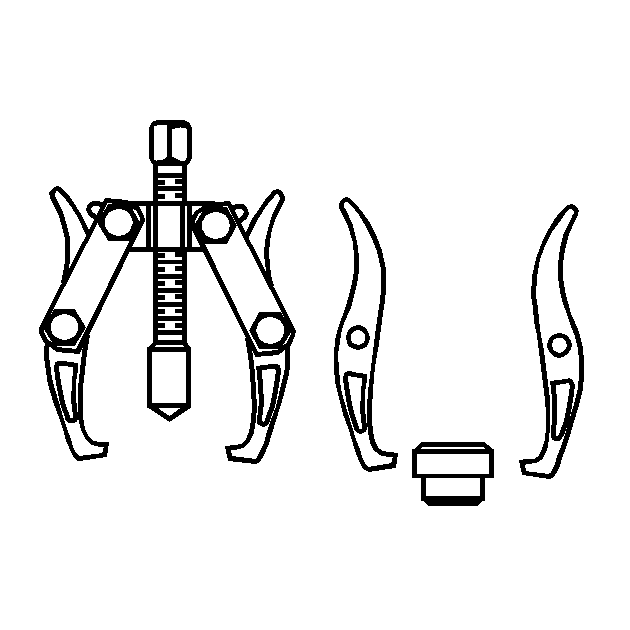

CH-161-B DT-161-B KM-161-B J-22888-20A Bearing Puller |
|
CH-804 CH-49692 MKM-804 Tensioner |
|

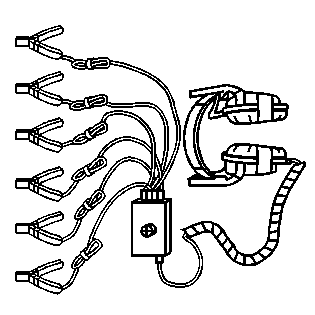

CH-39570 J-39570 Chassis Ear |
|

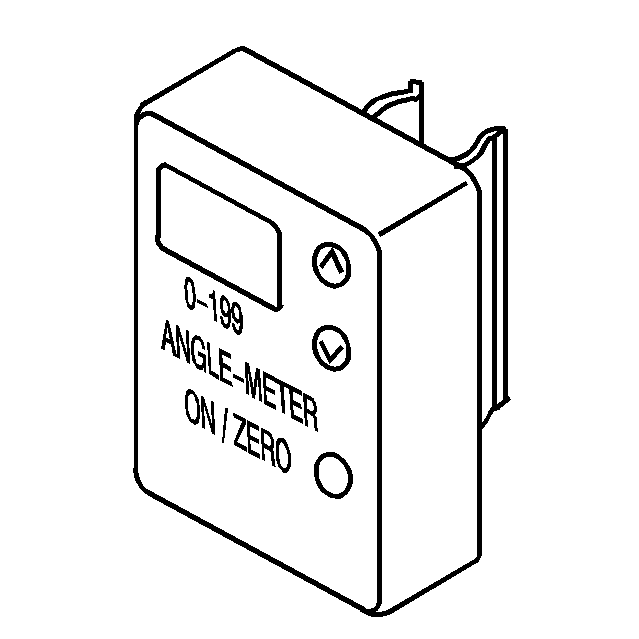

EN-45059 J-45059 Angle Meter |
|
GE-8001 J-8001 Dial Indicator Set |
Power Steering System Description and Operation
The power steering system reduces the amount of effort needed to steer the vehicle.
The system uses the powertrain control module (PCM), body control module (BCM),
power steering control module (P ...
Steering Gear Boot Replacement
Special Tools
CH-804 Tensioner
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicl ...
