Chevrolet Sonic Repair Manual: Torque Converter Housing with Fluid Pump Assembly Installation (6T40/45/50 Non Hybrid)

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Transmission Oil Cooler / Torque Converter / Torque Converter Housing with Fluid Pump Assembly Installation (6T40/45/50 Non Hybrid)



Torque Converter Housing with Fluid Pump Assembly Installation

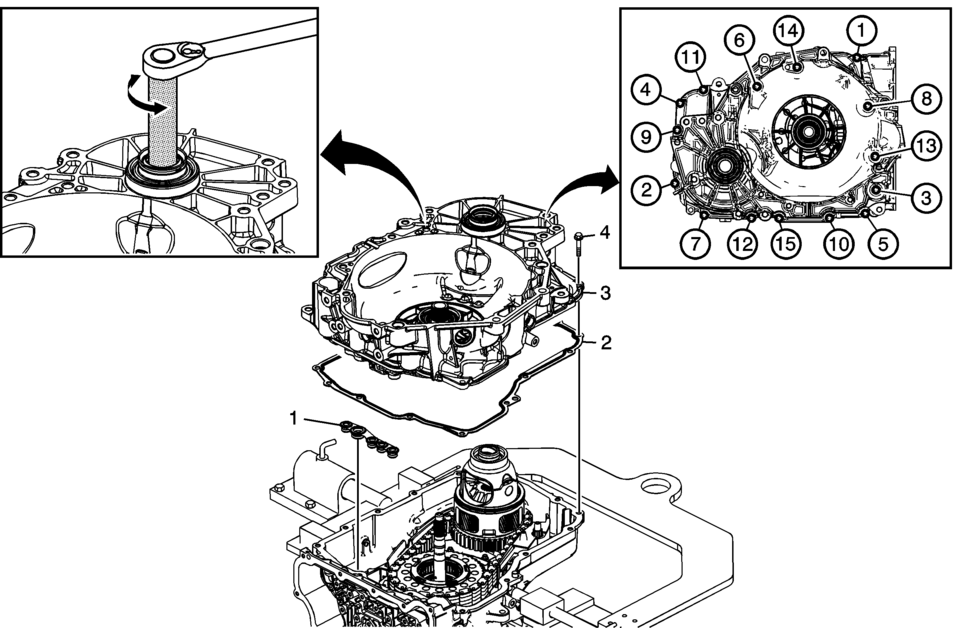

Callout

Component Name

1

Fluid Pump Seal Assembly

2

Torque Converter Housing Gasket

3

Torque Converter (w/Fluid Pump) Housing Assembly

Note:

Rotate the differential slightly in each direction using the rotating tool to align the Differential Pinion Gears with the Differential Ring Gear in the Torque Converter Housing.

  • DT-47793 Differential Rotating Tool for 6T40/45 applications
  • DT-49938 Differential Rotating Tool for 6T50 applications
Special Tools

  • DT-47793 Differential Rotating Tool
  • DT-49938 Differential Rotating Tool

For equivalent regional tools, refer to Special Tools.

4

Torque Converter and Differential Housing Bolts M8 x 30 (Qty: 15)

Caution:

Refer to Fastener Caution.

Procedure

Tighten the bolts in sequence shown.

Tighten


10 Y (89 lb in) then rotate the bolt an additional 50 degrees

Special Tool

EN-45059 Angle Meter or equivalent

For equivalent regional tools, refer to Special Tools.
