Torque Converter Installation

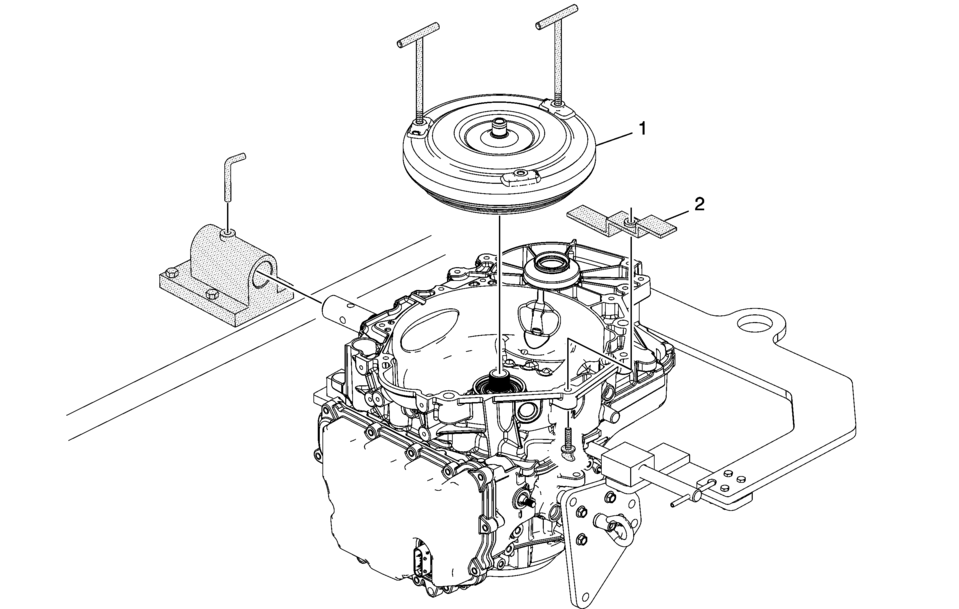

Callout

Component Name

1

Torque Converter Assembly

Note:

Failure to lower the torque converter straight down could damage the torque converter clutch lip seal inside the torque converter clutch assembly.

Special Tool

DT-46409 Torque Converter Lifting Handles

For equivalent regional tools, refer to Special Tools.

2

DT-21366 Converter Holding Strap

Warning:

The torque converter must be held to the torque converter housing by a retaining device such as shipping brackets. Without the retaining device, the torque converter may slide forward, disengaging the oil pump, or may fall completely out of the transmission causing personal injury and/or property damage.

Torque Converter Housing with Fluid Pump Assembly Removal (Non Hybrid)
Torque Converter Housing with Fluid Pump Assembly Removal Callout Component Name 1 Torque Converter and Differential Hou ...

Torque Converter Removal
Torque Converter Removal Callout Component Name 1 Lock Pin Warning: Lock pin must be secured into the bench fixt ...
