Chevrolet Sonic Repair Manual: Transmission Fluid Pump Assemble (6T40/45/50)

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Automatic / General / Transmission Fluid Pump Assemble (6T40/45/50)

Table 1: Fluid Pump w/Valve Trains Assemble
Table 2: Torque Converter Fluid Seal and Fluid Filter Assembly Assemble

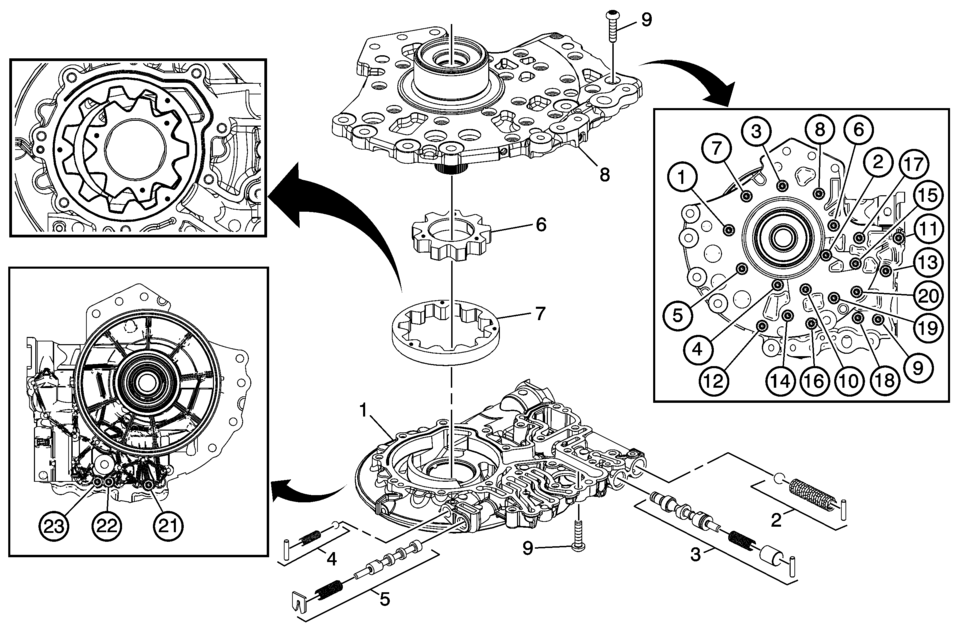

Fluid Pump w/Valve Trains Assemble


Fluid Pump w/Valve Trains Assemble

Callout

Component Name

1

A/Trans Fluid Pump Body

2

Fluid Pump Blow Off Ball Valve Train

3

Pressure Regulator Valve Train

4

TCC Blow Off Ball Valve Train

5

TCC Control Valve Train

6

Fluid Pump Drive Gear

Note:

  • Align ID feature dots with the driven gear as shown above.
  • The chamfer on the drive gear teeth faces the pump body.

7

Fluid Pump Driven Gear

Note:

  • Align ID feature dots with the drive gear as shown above, some models.
  • The chamfer on the driven gear O.D. faces the pump body.

8

Fluid Pump Cover

9

Fluid Pump Cover Bolts M6 x 25 (Qty: 23)

Caution:

Refer to Fastener Caution.

Tighten


12 Y (106 lb in)

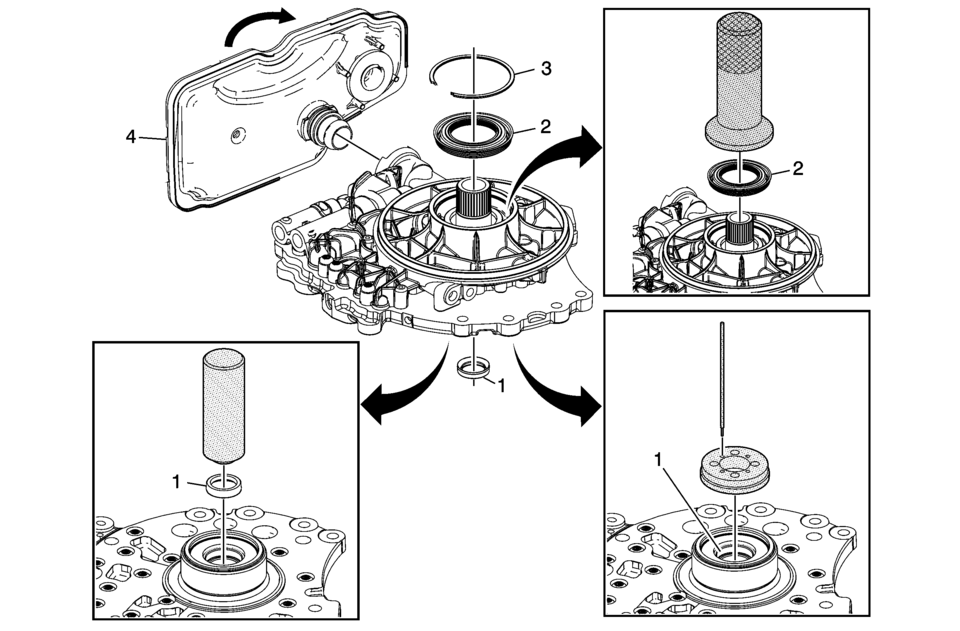

Torque Converter Fluid Seal and Fluid Filter Assembly Assemble


Torque Converter Fluid Seal and Fluid Filter Assembly Assemble

Callout

Component Name

1

Torque Converter Fluid Seal Assembly

Note:

The fluid seal assembly must be staked in place using DT-49131 seal staking tool to ensure proper seal retention.

Special Tool

  • DT-47792 Seal Installer
  • DT-49131 Seal Staking Tool

For equivalent regional tools, refer to Special Tools.

2

Torque Converter Fluid Seal

Special Tool

DT-47791-A Seal Installer

For equivalent regional tools, refer to Special Tools.

3

Torque Converter Fluid Seal Retainer

4

Fluid Filter Assembly

Note:

Rotate filter 90 degrees to engage locking tangs.
