Callout |
Component Name |
|---|---|
Preliminary Procedures
|
|
|
1 |
Yaw Sensor Nut Caution: Refer to Fastener Caution.
9 Y (80 lb in) |
|
2 |

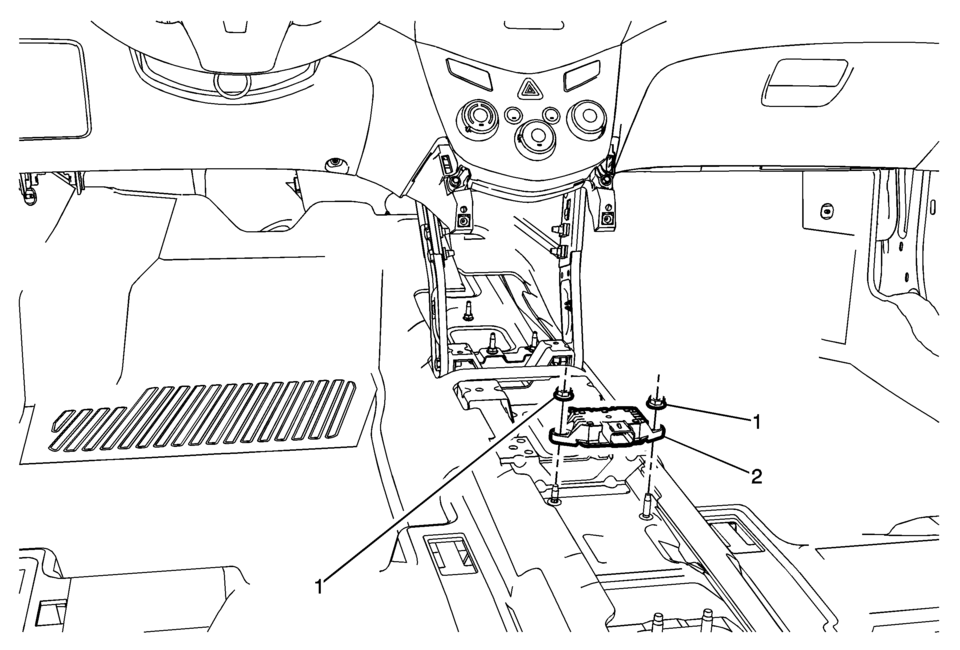

Vehicle Yaw Sensor with Vehicle Lateral and Longitudinal Accelerometer Procedure
|
Vehicle Yaw Sensor Learn
SensorsRepairing Damaged Wire Insulation
If the wire insulation has been chafed, or broken, enough to show the conductive
portion of the wire, and the wire is not damaged, determine the length of insulation
that needs to be repaired. If the repair is less than 280?€‰mm (11?€‰in), cut the
wire within the damaged area. Then sli ...
Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential
Ring Gear Removal (6T30)
Transmission Fluid Pump, Front Differential Carrier Baffle, and Front
Differential Ring Gear Removal
Callout
Component Name
1
Front Differential Carrier Baffle Bolts M6 x 25 (Qty: 2)
...
Park - Engine Running (Gen 2)
When the gear selector lever is in the Park (P) position, fluid is drawn into
the pump through the transmission fluid filter assembly. Line pressure is then directed
to the following valves:
Fluid Pressure Directed in Preparation
for a Shift
Manual Valve
Mechanically controlled ...
