Chevrolet Sonic Repair Manual: Backup Lamp Switch Replacement

Removal Procedure

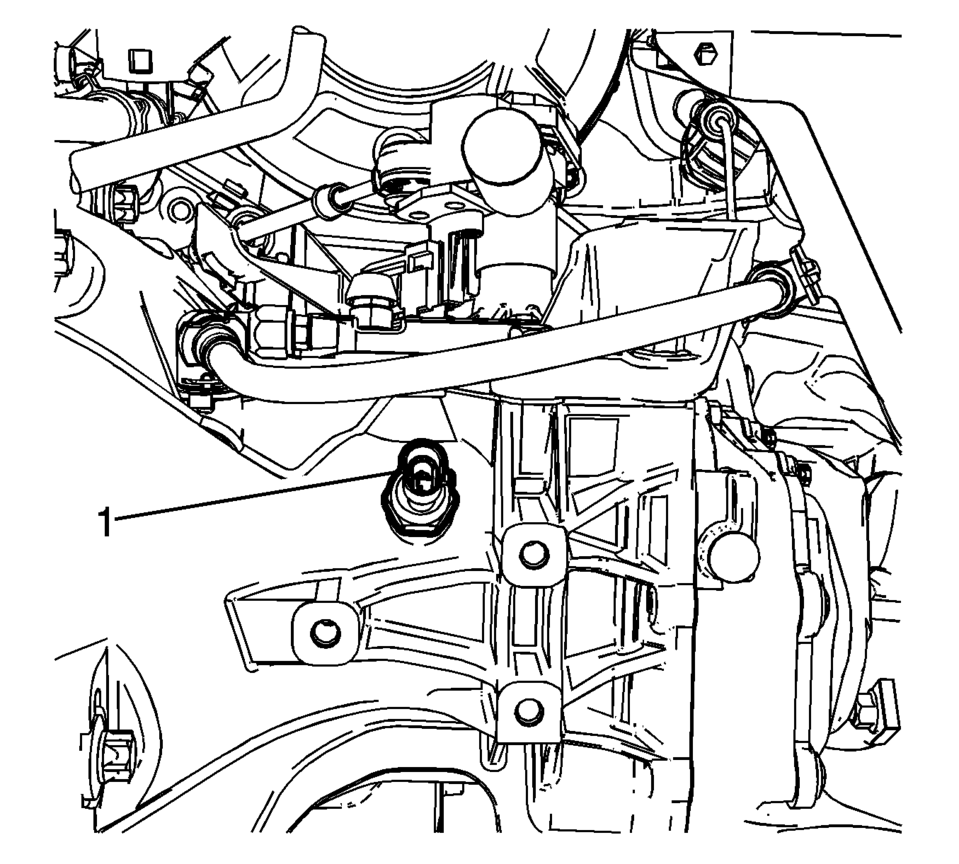

    Disconnect the electrical connector from the backup lamp switch?€‰(1).
  1. Disconnect the electrical connector from the backup lamp switch?€‰(1).
  2. Remove the backup lamp switch?€‰(1) from the transmission.
  3. Remove and DISCARD the backup lamp switch washer from the backup lamp switch.
Installation Procedure

    Install a NEW backup lamp switch washer on the backup lamp switch?€‰(1).
  1. Install a NEW backup lamp switch washer on the backup lamp switch?€‰(1).
  2. Caution:

    Refer to Component Fastener Tightening Caution.

  3. Install the backup lamp switch?€‰(1) into the transmission case, and tighten to 20?€‰Y (15?€‰lb?€‰ft).

  4. Connect the electrical connector to the backup lamp switch?€‰(1).
