Chevrolet Sonic Repair Manual: Engine Coolant Air Bleed Hose Replacement (LUV)
|

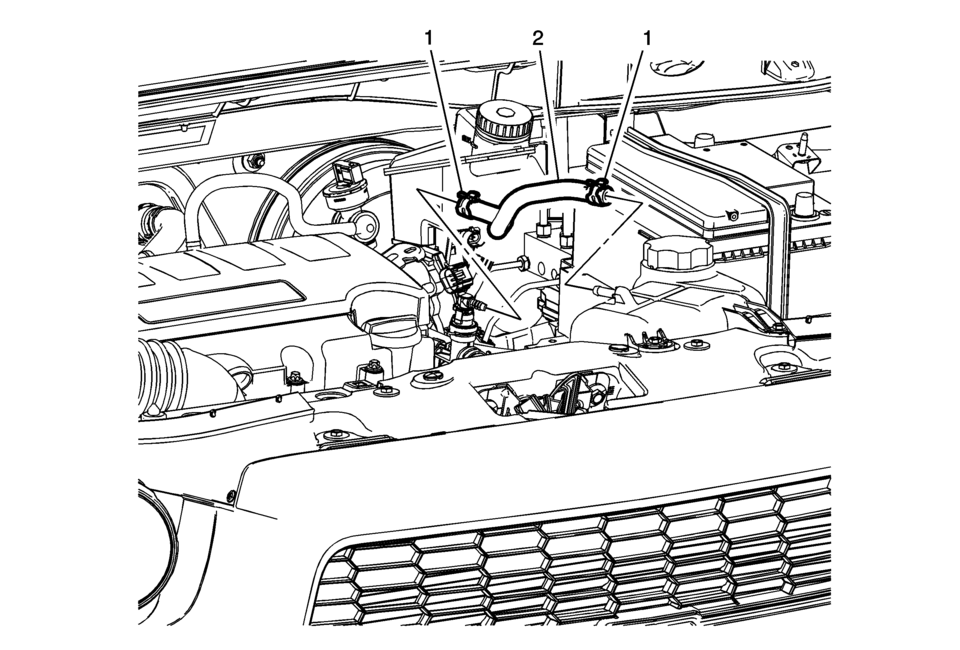

Callout |
Component Name |
|---|---|
|
1 |
Engine Coolant Air Bleed Hose Clamp (Qty: 2) Special Tools
BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools. |
|
2 |
Engine Coolant Air Bleed Hose |
