Chevrolet Sonic Repair Manual: Front Fog Lamp Bulb Replacement



Front Fog Lamp Bulb Replacement

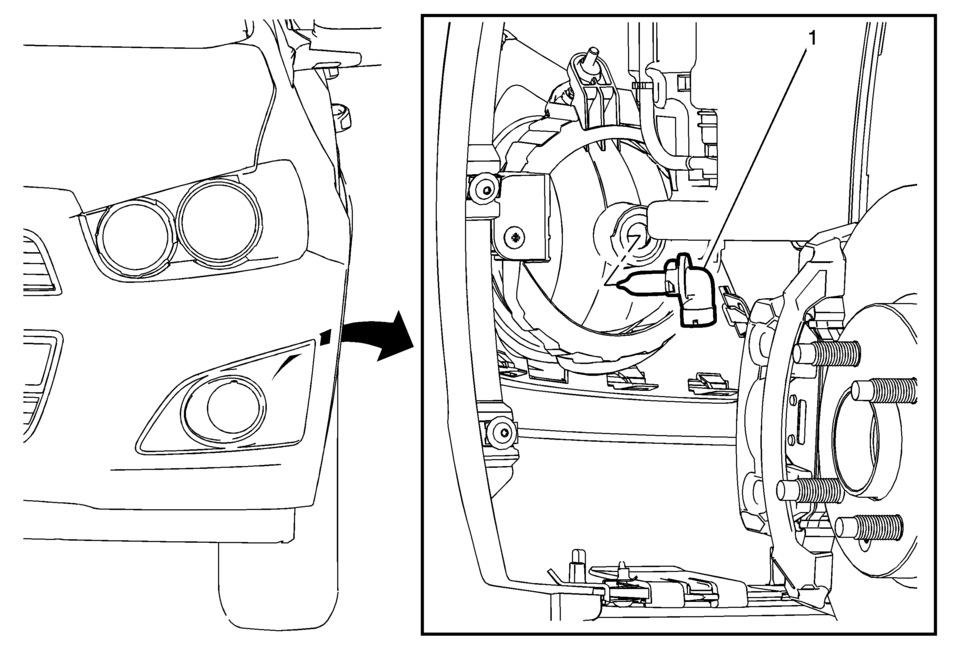

Callout

Component Name

Preliminary Procedure

  1. Remove either the left front or right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement.
  2. Disconnect the electrical connector to the fog lamp bulb.

1

Front Fog Lamp Bulb

Warning:

Refer to Halogen Bulb Warning.

Procedure

Turn the fog lamp bulb socket counter-clockwise and remove from the fog lamp housing.

Fog Lamp Aiming
Preparation Procedure Note: Horizontal aim is not adjustable on this vehicle. Vertical aim is done by an adjusting nut located on the rear of the fog lamp. Prior to aiming the fog ...

Front Fog Lamp Cover Replacement (Without T3U)
Front Fog Lamp Cover Replacement Callout Component Name Preliminary Procedure Remove the front wheelhouse liner. Refer to Front ...
